Punch press

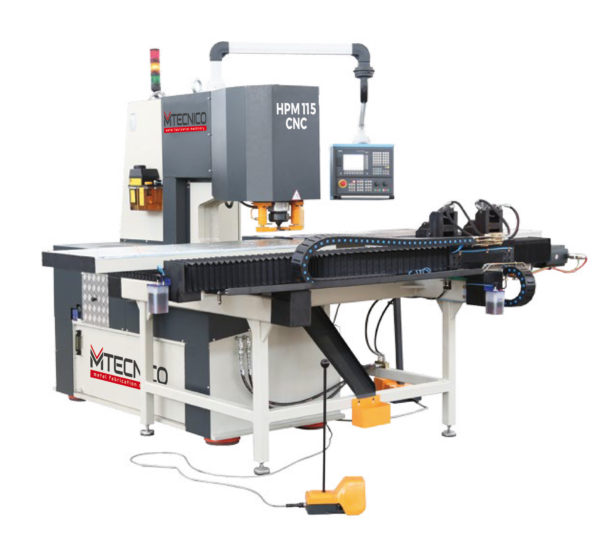

HPM 155 CNC PUNCH MACHINE

• Punch and die Ø 22* – Ø 26** (*HPM 65 / 85 – **HPM 115 / 175)
• Punch holder
• Led light on workstation
• Mobile CNC control panel
• Dividable Separate table
• Material holder with hydraulic clamps
• C-Spanner
• Automatic lubrication system

• With the punching tool, holes and punches up to Ø 57 mm (in 12* – 22** mm thickness) can be made easily and efficiently. The punches and dies are interchangable and easy to change. Special tools and punches are available upon request.
• Table sizes 3050 x 500 mm
• On X and Y axis max. movement X:1600,Y:600 mm
• Max. carriage weight 250 kg.
• Material thickness 2 – 25 mm ( between )
• Positioning precision 0.1 mm
• On one axis max. movement speed of material holder 24 m/min
• On two axis max. movement speed of material holder 30 m/min
• Adjustable table clamps according to material thickness
• Min. distance on sides: 45 mm (with optional tool)
• Free software
• Manual punching (MDI)
• You can enter and record the programme (CAM)
• Programming with entering technical figures
