Manual bordering machines

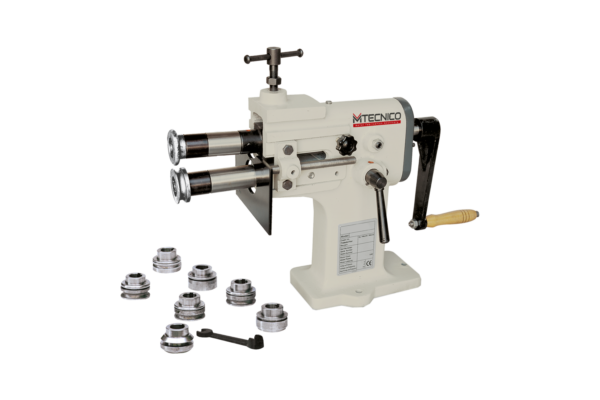

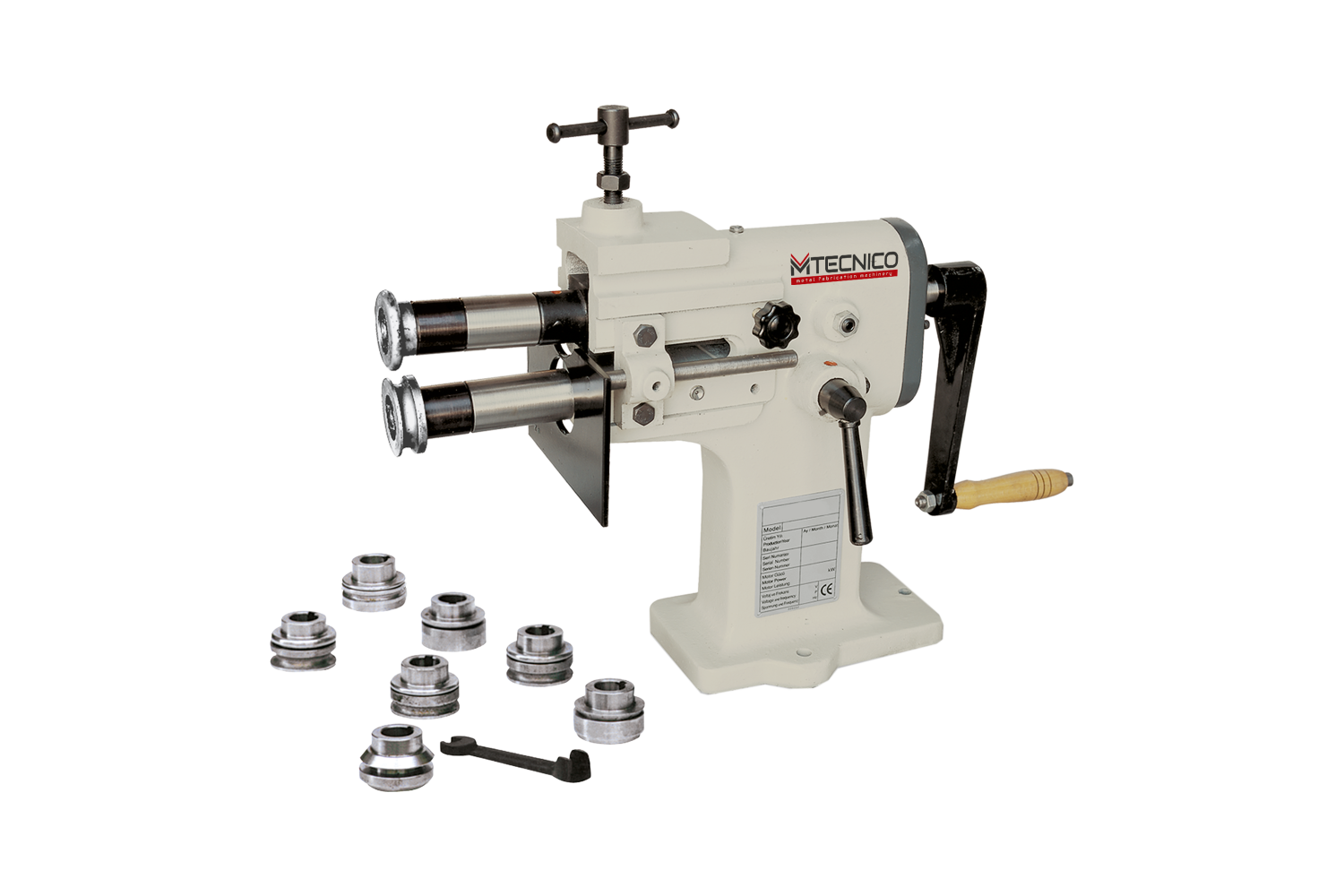

IK-1,2 Manual bordering machines



  • For producing of different bead types
  • The precise bearing of the shafts
  • Stable cast iron construction in modern design
  • Expanded range of use through 8 different, optionally available roller pairs
  • Including beading and bordering rolls
  • An adjustable fence on the lower shaft
  • Upper shaft adjustable

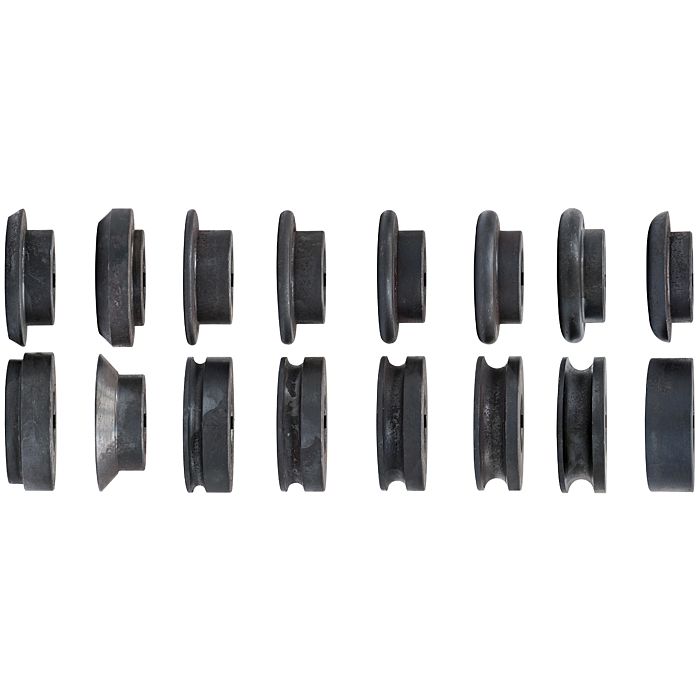

  • 8 pair beading and bordering rolls
  • Material fence
  • Roll wrench
MODEL
Shaft length
mm
Bordering capacity
mm
Roll diameters
mm
Throat depth
mm
Length
mm
Width
mm
Height
mm
Weight
kg
IK 0,8 110 0,8 56 80 380 180 380 30
IK 1,2 140 1,2 62 100 560 220 500 50
MODELS & TECHNICAL SPECIFICATIONS
