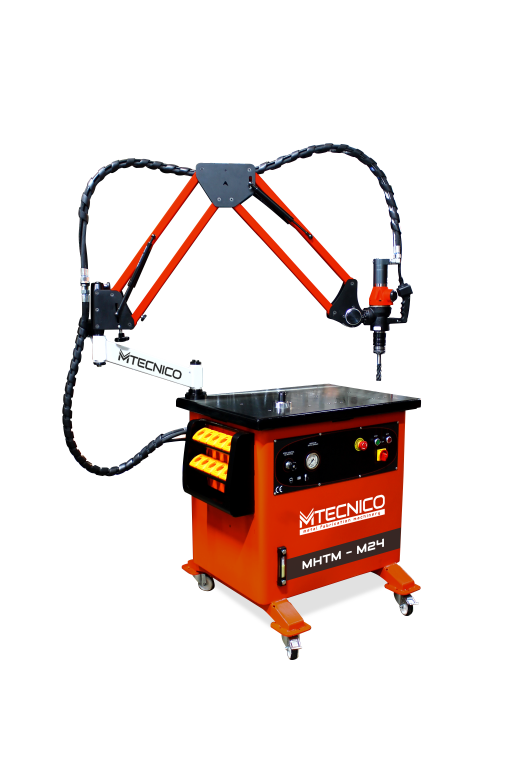

Hydraulic Tapping Machine

STANDARD FEATURES & SPECIFICATIONS

MTECNICO Hydraulic series 16H / 24H /36H Tapping Machines have a tapping capacity between M5-M36. Our special design provides a wide working area thanks to the arm structure which can be opened up to 2050 mm in the radius area.

The hydraulically operated system performs tapping operations between M5 and M36 quickly and with minimum cost.

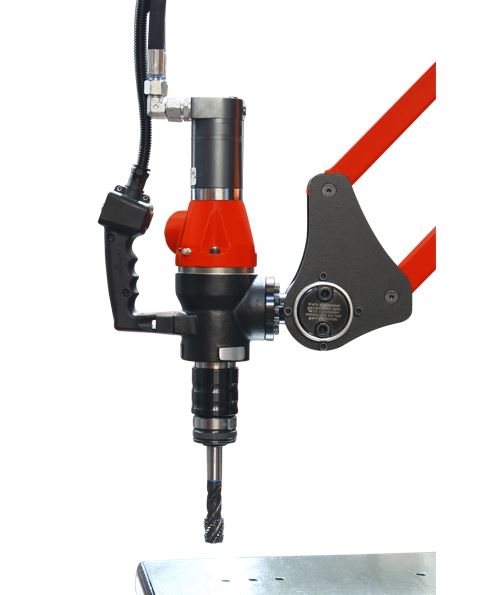

It has horizontal and vertical tapping capability at the desired speed according to guide size between 0 and 600 rpm as standard (M36/100 rpm )

– M5-M36 Tapping capacity
– 380 V operating Voltage
– High-speed ranges

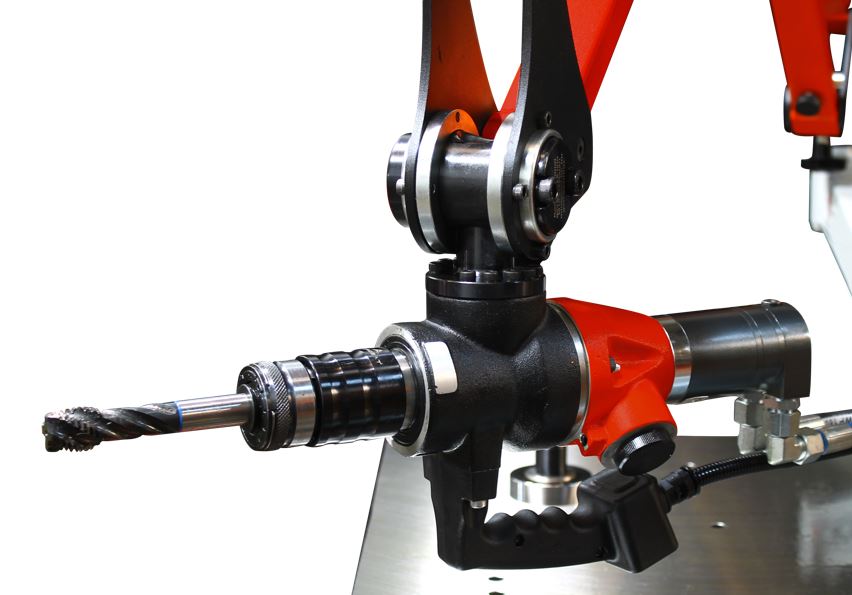

– Vertical, horizontal tapping feature thanks to 5 axis tapping head (PATENTED)
– Adjustable speed setting
– Easy to use and user-friendly constructions
– Strong machine constructions
– Movable pneumatic support tapping arm
– 2050 mm radius working area
– Quick tap switching feature

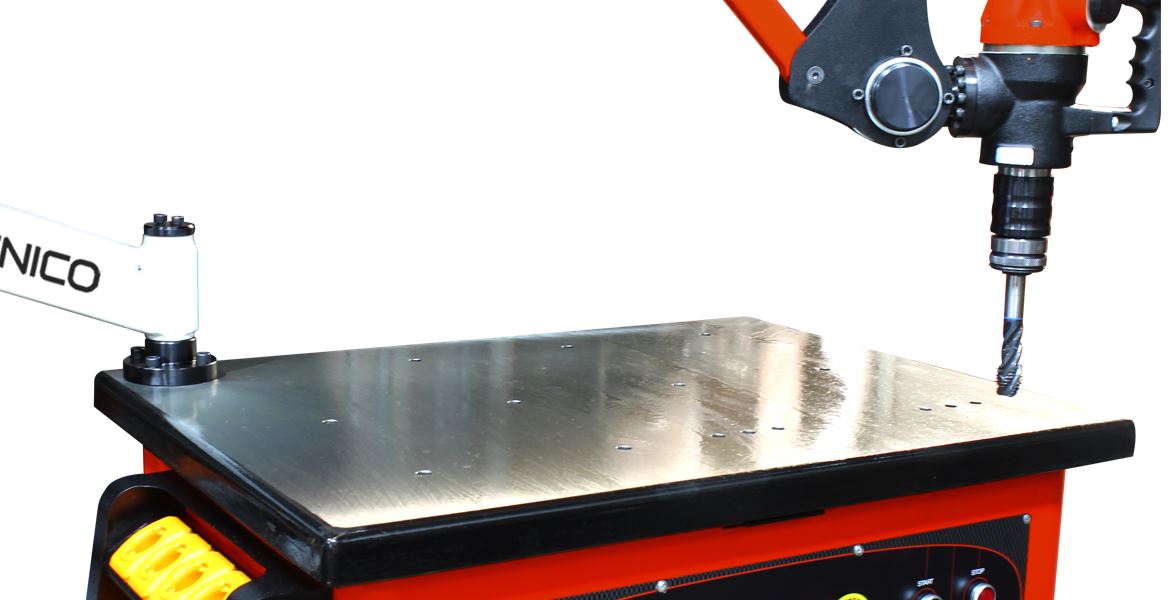

-900 mm x 700 mm Table
-Pot magnet for adjustment to head position
-Holder slot

OPTIONAL FEATURES

– Lubrication system with air spraying
– Tapping depth detector
– New generation T-slot table
– T-slot table
– Digital rpm reader
– Tapping collets. 14 pcs.( between m5 to m36)
