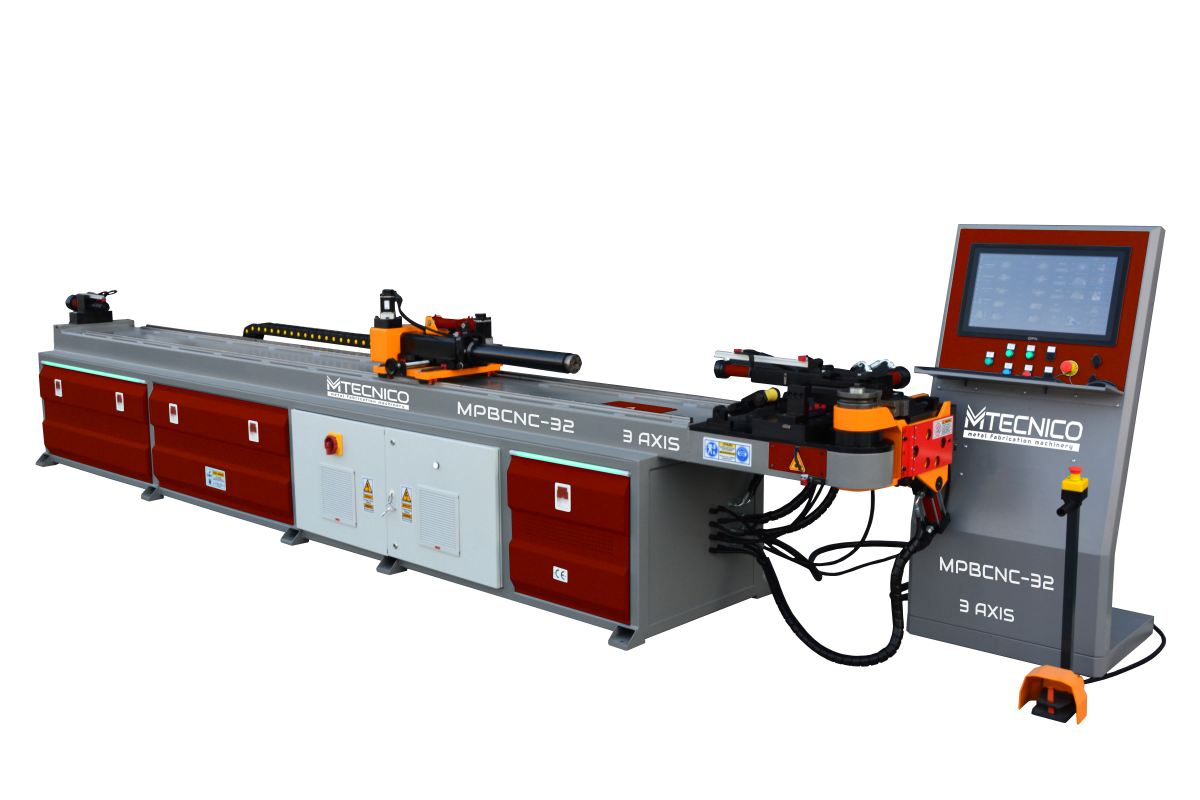

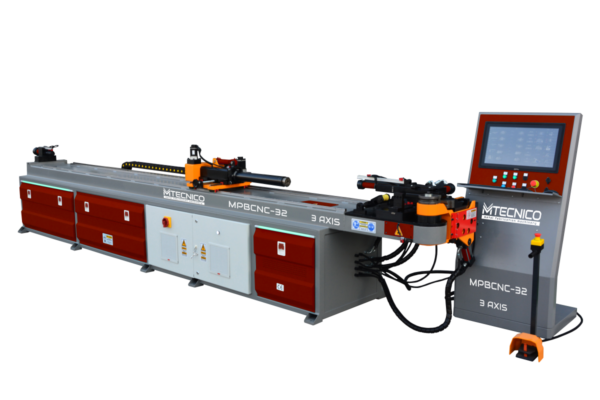

MPBCNC-32 3 AXIS Pipe & Tube Bending Machine
- 21 ‘’ color touch PC (intel Core i5cpu Ram 8gb)
- 2 Axis servo control (Y, B)
- Bending axis controlled hydraulic (C)
- 2 axial interpolation movement (Y, B)
- Improved 3D Tubular Simulation
- 3D Machine bending simulation (Collision)
- Automatic pipe calculation
- Motion PLC (Omron)
- Safety OverEtherCat
- Safety mat (750x1000mm)
- 2D Drawing program (free)
- All auxiliary movements are hydraulically operated (mandrel, clamp die, support, pusher, collet, and shaft carrier)
- Hydraulic oil cooling system (Electric)
- Automatic lubrication system
- Y-Axis Linear Axis System
- Security Switches
- Pedal control
- Manual and fully automatic operation feature
- Working without mandrel and mandrel feature
- Pulling feature while arming
- Possibility to program in YBC mode and convert it to X, Y, Z, R format.
- Line by line deletion feature in the program
- Clicking feature in 3D pipe simulation (Y, B, C index viewing)
- Converting X, Y, Z, R coordinates to Y, B, C, R format with a button
- Conversion of a DXF format chicory to Y, B, and C format with a button
- Conversion of STEP format chicydosian to Y, B, C format with a button
- Open and view the file in STL format (compare with the step file)
- By defining the angle obtained after the first twisting of various materials to the machine, automatic calculation of the difference in the following bends and taking the correct result in the bends
- MTECNICO CNC software sends automatic reporting of all daily weekly monthly items to your e-mail addresses.
- The feature of restarting from the place where the program is taken as a result of a power failure or an emergency stop and the ability to simulate it.
- Showing work time
- Possibility to receive remote assistance and updates
- Compliance with standards
